General Electric T1000B Stereo Refurbish

I have been watching for a GE 1000 stereo for quite a while, this one has been listed on ebay multiple times and always at ridiculous prices.

However they finally came to their senses and dropped the price to something reasonable. I received it today. It was somewhat well packed but the AM antenna had broke loose, thankfully it did not break. The glass is not cracked, but the silver sheet behind the knobs is wrinkled, I will attempt to fix this later.

I always wondered why shipping on these radios was really high, well this thing is very heavy. I estimate it has at least 5 lbs of 1/16" steel in it, the entire front part of the chassis is a single steel plate.

Oddities for this Stereo:
Weight 28 pounds
10 tubes
The AM/FM/STereo knob is mechanically linked to it's switch on a sub chassis.
it has a large flywheel on the tuning knob like more high end tuners.
a 12at7 that is the MPX input amp and the 19kc OSC-doubler.
2 12ax7's, 1 for the phono preamp, and one for the Radio AF amp.
Single ended 6aq5a's for beam power tubes.
BASS Boost Couplates.
A power transformer outputting 150v .122A and 6.3v 3.5a.
No "stereo beacon" light.
Speakers are connected to the radio through the hinges.
External speakers can be attached to the stereo either by connectors on the speaker enclosures, or the back of the stereo. attaching external speakers does not appear to disconnect the internal ones, unless you un-hinge the external ones. It appears that the hinged speakers can be disconnected and then connected to the external connection on the back for wider separation.
Speakers are the weird inverted cone type.
speaker cloth on both sides of the speaker enclosures so you can listen with the enclosures open or closed.

First thing I did was test all the tubes and clean their sockets. All tubes tested ok and may be original as they all have the same date code? 188-5.

I took the chassis out.

The process involved removing 8 screws; 3 from the underside of the radio, 3 under the inside top and 2 on the right side near the output transformers. I de-soldered the hinges at the tie points; 1 near the large multi-section capacitor, and the other behind the angled bracket near the output transformers. Then the hard part, the 6 knobs on the front are metal and there is glass behind them so you cannot pry up on them with a screw driver or whatever. I took some scrap wire and shimmied that behind them, and gently rocked them while pulling and they eventually popped off.

various circuit boards.

Look at all that steel! I like how all the circuit boards are mostly accessible.

The first repair I did was to mount the AM antenna with new cable clamps, and re-solder it to the tuning capacitor where it broke off from.

The next repairs on the list are to check and probably re-solder ALL the circuit boards, and replace the Electrolytics. The seller stated that it was working but I will not be powering it up till the electrolytics are replaced.

Here are the pictures of the Electrolytics:

The seller reported this thing had booming bass. I would not say that, I would say that it sounds like listening to a stereo someone crammed inside a cows stomach.

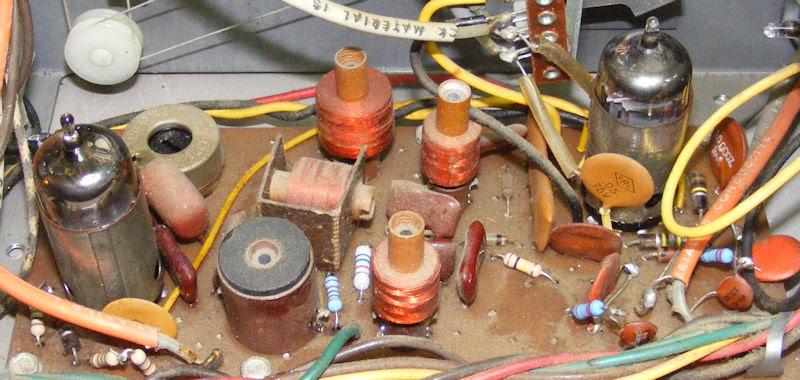

I located the bass boost couplates and shorted them. The bright orange discs in the picture below. they consist of a 1 meg resistor bypassed by a 100pf capacitor.

If you have one of these I highly recommend doing this mod, the stereo sounds a whole lot better, less muddy and throbbing. I will note it inside the chassis and it can be easily undone.

As to the #12 lamps... I went to a local surplus electronics store and happened to find some bulbs that looked like #12's they were labeled as #15, sadly they are #15's and will not work. The problem with #12 bulbs is that when they show up on ebay people want ridiculous prices for them as they are used in certain Lionel train accessories. There are some sellers that want between $3 and $11 a piece for them.

I removed the #12 bulb mounts and installed 2 bayonet mounts for GE 47 bulbs. I screwed and soldered one of them and soldered the other to the chassis. I angled them to better match the location and height of the old bulbs, otherwise they wont fit in the cabinet.

47 bulbs are the same voltage and amperage as #12's 6.3v .15a

I checked all the resistors on the Tuner chassis and they all checked out good... EXCEPT the resistors above the tuning capacitor, almost every one of them was out of tolerance and one of them was open.

The out of tolerance caps were (per Sams):
R7
R8
R10
R11
R12
R6 was open
R5, R9 and R70 were ok.

of course all the resistors I had to replace were in the most difficult to reach spot on the whole radio. I blame excessive heat for their being out of tolerance.

I checked and replaced resistors on the MPX board. I had to remove the angle bracket from the chassis to access the board better. of the 15 resistors on the mpx board, I replaced 7. the 2 blue resistors on the lower right of the picture were replaced not because they were out of tolerance, but because they output audio to the output board and I wanted them to better match.

one trace on the board pretty much came completely off and I had to tie the 3 resistors that used it together. These traces are held on with good intentions and not much else.

In between working on it, I listen to it, and it keeps sounding better. Of course I am listening to it through a pair of Monarch bookshelf speakers (coincidentally on the bookshelf above my bench). I don't know what it sounds like through it's factory speakers (yet).

I decided to take a break from the resistors and look in to the glass panel and silver backing. There is what looked like black specs between the glass and the silver foil.

I took it apart and found (to my dismay) the black specs are actually missing silver and the black backing material showing through. Which means it has to be replaced.

This is what it looks like:

It looks like tiny sequins or trout scales. It's pretty tough stuff, although I did tear it once while removing it.

The material was applied in layers:
reverse painted Glass
Silver mylar like material
Thick black vinyl like material
Thin black mylar or nylon like material stuck to...
steel plate

I went to Michaels and there were several options, all of which were very sparkly and gaudy. I found some stuff that looks almost exactly like the foil that is in the radio but not as shiny. It is called "Diamond Texture foil" item number 267532. It is just not as shiny chrome as the original. It's close enough for me.

I replaced 13 of 20 out of tolerance resistors on the output board. This was probably the most difficult one to work on because many of the resistors are under the bundles of wires. The 3 resistors at the top are in series to replace the 120Ω 1 watt resistor that I do not have.

Some were so hard to get to that I snipped them out and installed them on the solder side of the board.

Several could only be tested by being disconnected because they gave very high readings or would not give a stable reading.

I temporarily put the dial glass back in the cabinet, and then used that to mark where 1600kc is on a strip of painters tape mounted to the front of the radio.

I pulled the chassis out and using the mark as a guide I marked all the other spots on the dial called for in the AM and FM alignments. I expected more but all the instructions called for was 1600kc, 1400kc and 98mc.

I identified and marked all the IF cans, with thier top and bottom designations in that same order. I marked the corrected test points per Braithwaite. I located and soldered wires to the hard to get to test points on the multiplex board. In the process I found another out of tolerance cap behind the 12at7 (v6) it was an 820Ω and is also test point D.

AM was pretty much still in near perfect alignment, I only tweaked it slightly and adjusted the dial tracking slightly better.
FM was also in near perfect alignment (not anymore) If yours sounds good? LEAVE IT ALONE! I have done FM alignments before, and even stereo alignments (I have the equipment) but every time I do it's not pretty, and usually takes several tries.

Test points B and C are NOT reversed on the Schematic but they ARE reversed on the Tuner Chassis Component ID page in the Sams. On the Tuner Chassis Component ID page B points to pin 4 of the Couplate and C to the Resistor connected to Pin 1 of the Couplate, reverse that (look on the couplate for the pin numbers). Pin 4 of Couplate K3 (C) exhibits plus and minus voltages as it is supposed to. Test point B only shows a peak as it is supposed to. However IF transformers A13 and A7 ARE reversed. When doing step 5 I found that a DMM works well as I had trouble getting my VTVM to center on zero in the middle of the dial. You just have to go slower with the DMM.

I had a lot of trouble with the alignment, first my sweep generator was not working correctly or I do not know how to hook it up I switched to using the DC VTVM but still had problems due to the inconsistencies of the instructions, and (as I found out just before I gave up for today) IF transformer L5 (A12 A11) had a cold solder joint and was reeking havoc with my attempts to do the alignment (now resoldered).

If you insist on doing the alignment you will need to make this viewtopic.php?f=10&t=285415 You insert it in between the tube and the Shield of V2 (FM Mixer). It is a tight fit but the tube shield has a split and can be expanded for it to fit. Use paper based tape, it won't burn but it might melt if it is plastic. (my invention)

You may find that A14 does not do anything (or very little) and you won't be able to move 98mc on the dial. Don't give up, to the right of V2 is a large copper coil (seen in the picture above) carefully expand or shrink the open coil to bring it in to proper alignment (not in the instructions).

Re-soldering L5 did the trick, and I figured out why my sweep generator was not doing what it should. The instructions call for putting a capacitor between the Signal generator and the ungrounded shield around the FM Mixer (V2). Well my sweep generator RF output probe already has that and adding a second one seemed to greatly attenuate the signal.

This time the alignment went smoothly and quickly.

The only issue remaining is that I have to turn the balance far to the right to get proper stereo.

This stereo has always had this issue and I am not sure if it is caused by one of the output channels or if I need to do the stereo alignment.

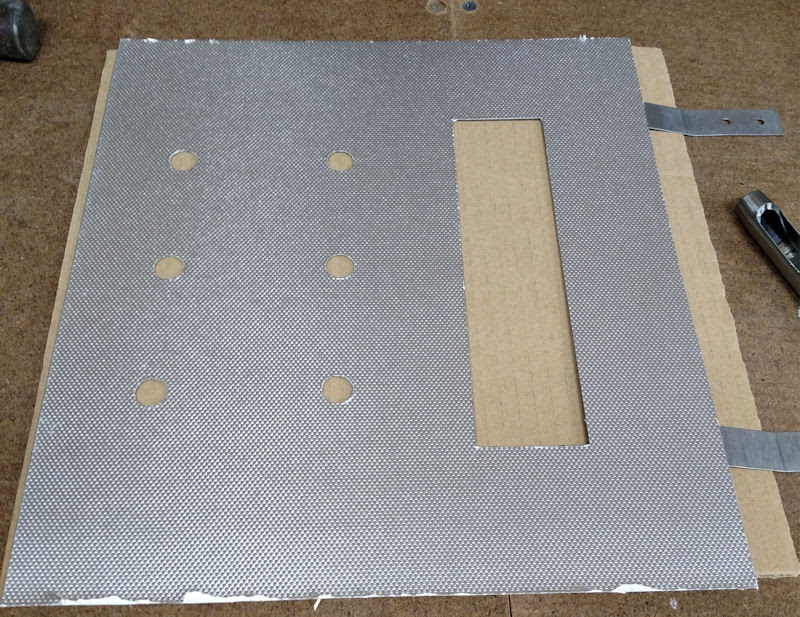

 Applying the background to the plate for the tuning dial went pretty quickly and easily. I used a light coating of some spray on contact glue applied to the face of the plate and the back of the diamond texture foil, carefully aligned it with the top and left edge and then gently smoothed it from the center out.

I trimmed it from the back side using a NEW (very important) exacto knife blade. Be very careful that you cut all the way through the paper and foil. You can see at the bottom where I did not go all the way through and when I removed the excess paper it pulled some of the foil off. This won't be seen so it is not a big deal. I used a hole punch backed by a block of tape covered aluminum to punch out the holes for the pot shafts.

When I cut out the large rectangular hole I removed the piece pushing it through from the front (foil covered) out the back to avoid tearing or pulling the foil off the paper backing.

I did the stereo alignment.
There are 2 problems with doing it:
The instructions are not clear.
A17, A18, A19 are completely stuck (possibly glued in place).

I was able to adjust the 19kc Pilot settings, but not in the way they said. The instructions say to input the 19kc in to pin 2 of V6 (which I did) but when I adjusted them as described the stereo signal was wonky and there was a hum that increased or decreased in pitch when A15 and A16 were adjusted. This meant the pilot was off. Instead what I did was, I have a Leader LSG231 stereo generator, I outputted the composite signal from that to V6, set it to L+R hooked the scope up to the speakers, made sure the radio was set to stereo. adjusted volume and balance, alternating with adjusting A15 and A16. I adjusted A15 to get the beat frequency nulled, and A16 to get the sign wave traces to match. I would then (while listening through head phones make sure the balance was even. This was made difficult since there is a bias in my stereo to the left side, and I think it is because one or more of the tubes is slightly weak on the right side.

I replaced the "weather stripping" from the front of the radio.

I re-glued the rubber strips to the top and bottom of the dial glass using tacky glue (I do not want it to be permanent).

Putting the dial glass back in the radio was difficult as there are wooden blocks that help hold it in place, these blocks fell out. I figured out where one went but the small one I just guessed. The long one I glued back in place, but I just wedged the other one in. The rubber kept binding and not wanting to stay where it should on the glass, but I got it in properly.

I found that the FM dial does not track accurately even though 98 is lined up properly. I think there is more to the alignment then Sam's has in the instructions. I would probably need an actual GE service manual to get it to track right. Since it works and sounds good I am not going to mess with it anymore.

I put the back on and cleaned the power cord.

The dial light works as it should, however without the dial light it is hard to read the reverse painted letters on the dial glass, which was the case with the original silver backing.

It sounds great with the OEM speakers, there is no need for the bass boost couplates, there is more than enough bass and with the speakers closed the bass is further reduced. Stereo separation is perfect (adjusted for my left bias). The left bias exists even with an mp3 player connected to the phono input.
