Droid Turbo XT1254 no sound from external speaker

Droid Turbo XT1254 no sound from external speaker.
My Droid Turbo recently stopped playing sound from the external speaker, and starting about 1 or 2 months ago the flash light stopped working.

Some googling produced an article that mentioned that someone had a similar problem and they found that if they pressed on the back of the case near the camera the external speaker would start working. I found that mine exhibits the same behavior. I opened up my phone to see if I could possibly fix the problem, and found the cause The battery is swelling up. It appears that the swelling is separating some connections. This may be the cause of the back lights not working as well.

The problem might be fixable but my phone is eligible for an upgrade and I don't want to mess with it.

Hackaday Write up

I submitted a post from my blog to Hackaday and they liked it, read about it here.

Read the comments.

General Electric 3-5251A Boom Box adding mp3 and bluetooth

I got this from ebay:

 I was looking for a boom box that I might be able to add bluetooth and maybe mp3 player abilities. It seemed it might be a good candidate for the addition of an internal or maybe an external device on the back.

 Although you cannot tell from the picture above there is only 2 possible locations to install something, one at the top behind the tape buttons, and a small location below the 2 inputs on the back (lower middle).

After looking on ebay for possibilities it became clear that it would be too complicated (and destructive?).

I did some research and found these 2 items on ebay:
a bluetooth adapter in a tape cassette.
http://www.ebay.com/itm/322385616259?_t ... EBIDX%3AIT
and an mp3 player (with remote) in a cassette.
http://www.ebay.com/itm/252509649751?_t ... EBIDX%3AIT

The next problem was when I tried to play a tape (it would not move). If it would not move the mp3 and bluetooth player would not work. I found that the source capstan was almost frozen and the take up was stiff. Some judicious applications of light oil and some moving things back and forth freed it up enough that it played a tape just fine. Pretty good for a 32 year old boom box.

The next issue was that when you pressed play on the tape there was a loud crashing static sound and one of the channels (usually the left one) would not work or fade out after a while. I was worried that there was a problem with the amplifier or maybe the play head on the tape recorder. I opened the unit up and was surprised at how easy it can be worked on. 7 screws hold on the back, the power supply is in the back panel and is plugged in to the mainboard, and there is a connector for the speakers.

4 screws hold the chassis in the unit, then a handful of screws hold the mainboard to the frame. the tuner wheel can be disconnected and then I secured it with a bread tie so I would not have to restring it. I cleaned all the pots and switches including the switch hidden near the play button. I checked a random electrolytic capacitor and found it was at it's rated capacity and had low ESR so I left them all alone.

I reassembled it, and tried the mp3 and bluetooth players and now there is no crash when I hit play and neither channel fades.

She sound great.

General Electric T1000B Stereo Refurbish

I have been watching for a GE 1000 stereo for quite a while, this one has been listed on ebay multiple times and always at ridiculous prices.

However they finally came to their senses and dropped the price to something reasonable. I received it today. It was somewhat well packed but the AM antenna had broke loose, thankfully it did not break. The glass is not cracked, but the silver sheet behind the knobs is wrinkled, I will attempt to fix this later.

I always wondered why shipping on these radios was really high, well this thing is very heavy. I estimate it has at least 5 lbs of 1/16" steel in it, the entire front part of the chassis is a single steel plate.

Oddities for this Stereo:
Weight 28 pounds
10 tubes
The AM/FM/STereo knob is mechanically linked to it's switch on a sub chassis.
it has a large flywheel on the tuning knob like more high end tuners.
a 12at7 that is the MPX input amp and the 19kc OSC-doubler.
2 12ax7's, 1 for the phono preamp, and one for the Radio AF amp.
Single ended 6aq5a's for beam power tubes.
BASS Boost Couplates.
A power transformer outputting 150v .122A and 6.3v 3.5a.
No "stereo beacon" light.
Speakers are connected to the radio through the hinges.
External speakers can be attached to the stereo either by connectors on the speaker enclosures, or the back of the stereo. attaching external speakers does not appear to disconnect the internal ones, unless you un-hinge the external ones. It appears that the hinged speakers can be disconnected and then connected to the external connection on the back for wider separation.
Speakers are the weird inverted cone type.
speaker cloth on both sides of the speaker enclosures so you can listen with the enclosures open or closed.

First thing I did was test all the tubes and clean their sockets. All tubes tested ok and may be original as they all have the same date code? 188-5.

I took the chassis out.

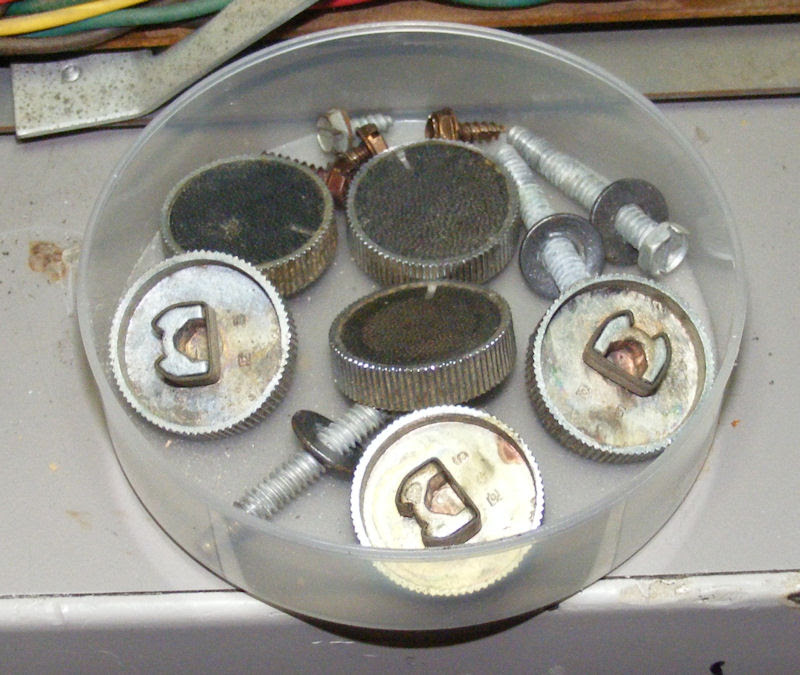

The process involved removing 8 screws; 3 from the underside of the radio, 3 under the inside top and 2 on the right side near the output transformers. I de-soldered the hinges at the tie points; 1 near the large multi-section capacitor, and the other behind the angled bracket near the output transformers. Then the hard part, the 6 knobs on the front are metal and there is glass behind them so you cannot pry up on them with a screw driver or whatever. I took some scrap wire and shimmied that behind them, and gently rocked them while pulling and they eventually popped off.

various circuit boards.

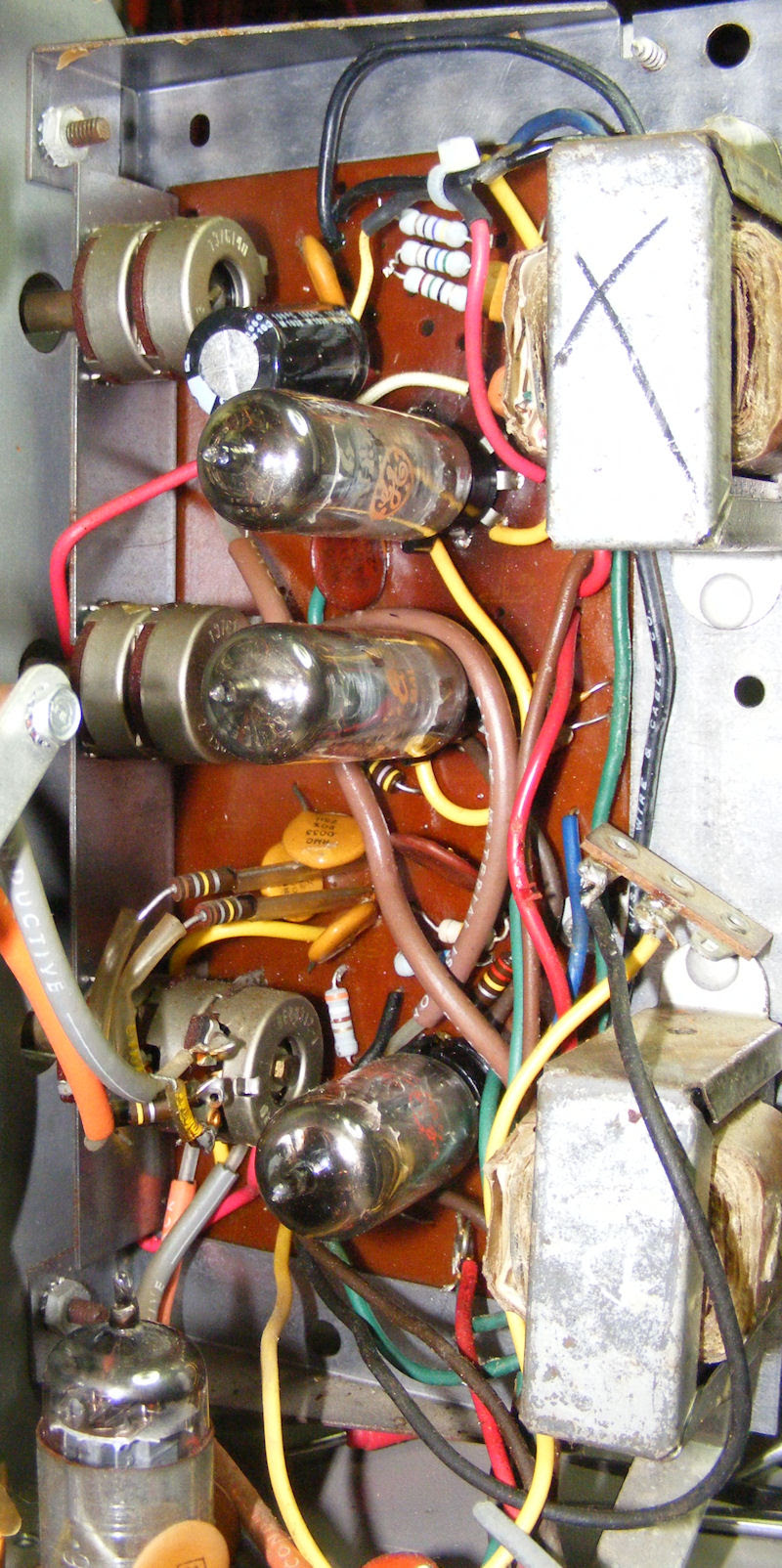

Look at all that steel! I like how all the circuit boards are mostly accessible.

The first repair I did was to mount the AM antenna with new cable clamps, and re-solder it to the tuning capacitor where it broke off from.

The next repairs on the list are to check and probably re-solder ALL the circuit boards, and replace the Electrolytics. The seller stated that it was working but I will not be powering it up till the electrolytics are replaced.

Here are the pictures of the Electrolytics:

The seller reported this thing had booming bass. I would not say that, I would say that it sounds like listening to a stereo someone crammed inside a cows stomach.

I located the bass boost couplates and shorted them. The bright orange discs in the picture below. they consist of a 1 meg resistor bypassed by a 100pf capacitor.

If you have one of these I highly recommend doing this mod, the stereo sounds a whole lot better, less muddy and throbbing. I will note it inside the chassis and it can be easily undone.

As to the #12 lamps... I went to a local surplus electronics store and happened to find some bulbs that looked like #12's they were labeled as #15, sadly they are #15's and will not work. The problem with #12 bulbs is that when they show up on ebay people want ridiculous prices for them as they are used in certain Lionel train accessories. There are some sellers that want between $3 and $11 a piece for them.

I removed the #12 bulb mounts and installed 2 bayonet mounts for GE 47 bulbs. I screwed and soldered one of them and soldered the other to the chassis. I angled them to better match the location and height of the old bulbs, otherwise they wont fit in the cabinet.

47 bulbs are the same voltage and amperage as #12's 6.3v .15a

I checked all the resistors on the Tuner chassis and they all checked out good... EXCEPT the resistors above the tuning capacitor, almost every one of them was out of tolerance and one of them was open.

The out of tolerance caps were (per Sams):
R7
R8
R10
R11
R12
R6 was open
R5, R9 and R70 were ok.

of course all the resistors I had to replace were in the most difficult to reach spot on the whole radio. I blame excessive heat for their being out of tolerance.

I checked and replaced resistors on the MPX board. I had to remove the angle bracket from the chassis to access the board better. of the 15 resistors on the mpx board, I replaced 7. the 2 blue resistors on the lower right of the picture were replaced not because they were out of tolerance, but because they output audio to the output board and I wanted them to better match.

one trace on the board pretty much came completely off and I had to tie the 3 resistors that used it together. These traces are held on with good intentions and not much else.

In between working on it, I listen to it, and it keeps sounding better. Of course I am listening to it through a pair of Monarch bookshelf speakers (coincidentally on the bookshelf above my bench). I don't know what it sounds like through it's factory speakers (yet).

I decided to take a break from the resistors and look in to the glass panel and silver backing. There is what looked like black specs between the glass and the silver foil.

I took it apart and found (to my dismay) the black specs are actually missing silver and the black backing material showing through. Which means it has to be replaced.

This is what it looks like:

It looks like tiny sequins or trout scales. It's pretty tough stuff, although I did tear it once while removing it.

The material was applied in layers:
reverse painted Glass
Silver mylar like material
Thick black vinyl like material
Thin black mylar or nylon like material stuck to...
steel plate

I went to Michaels and there were several options, all of which were very sparkly and gaudy. I found some stuff that looks almost exactly like the foil that is in the radio but not as shiny. It is called "Diamond Texture foil" item number 267532. It is just not as shiny chrome as the original. It's close enough for me.

I replaced 13 of 20 out of tolerance resistors on the output board. This was probably the most difficult one to work on because many of the resistors are under the bundles of wires. The 3 resistors at the top are in series to replace the 120Ω 1 watt resistor that I do not have.

Some were so hard to get to that I snipped them out and installed them on the solder side of the board.

Several could only be tested by being disconnected because they gave very high readings or would not give a stable reading.

I temporarily put the dial glass back in the cabinet, and then used that to mark where 1600kc is on a strip of painters tape mounted to the front of the radio.

I pulled the chassis out and using the mark as a guide I marked all the other spots on the dial called for in the AM and FM alignments. I expected more but all the instructions called for was 1600kc, 1400kc and 98mc.

I identified and marked all the IF cans, with thier top and bottom designations in that same order. I marked the corrected test points per Braithwaite. I located and soldered wires to the hard to get to test points on the multiplex board. In the process I found another out of tolerance cap behind the 12at7 (v6) it was an 820Ω and is also test point D.

AM was pretty much still in near perfect alignment, I only tweaked it slightly and adjusted the dial tracking slightly better.
FM was also in near perfect alignment (not anymore) If yours sounds good? LEAVE IT ALONE! I have done FM alignments before, and even stereo alignments (I have the equipment) but every time I do it's not pretty, and usually takes several tries.

Test points B and C are NOT reversed on the Schematic but they ARE reversed on the Tuner Chassis Component ID page in the Sams. On the Tuner Chassis Component ID page B points to pin 4 of the Couplate and C to the Resistor connected to Pin 1 of the Couplate, reverse that (look on the couplate for the pin numbers). Pin 4 of Couplate K3 (C) exhibits plus and minus voltages as it is supposed to. Test point B only shows a peak as it is supposed to. However IF transformers A13 and A7 ARE reversed. When doing step 5 I found that a DMM works well as I had trouble getting my VTVM to center on zero in the middle of the dial. You just have to go slower with the DMM.

I had a lot of trouble with the alignment, first my sweep generator was not working correctly or I do not know how to hook it up I switched to using the DC VTVM but still had problems due to the inconsistencies of the instructions, and (as I found out just before I gave up for today) IF transformer L5 (A12 A11) had a cold solder joint and was reeking havoc with my attempts to do the alignment (now resoldered).

If you insist on doing the alignment you will need to make this viewtopic.php?f=10&t=285415 You insert it in between the tube and the Shield of V2 (FM Mixer). It is a tight fit but the tube shield has a split and can be expanded for it to fit. Use paper based tape, it won't burn but it might melt if it is plastic. (my invention)

You may find that A14 does not do anything (or very little) and you won't be able to move 98mc on the dial. Don't give up, to the right of V2 is a large copper coil (seen in the picture above) carefully expand or shrink the open coil to bring it in to proper alignment (not in the instructions).

Re-soldering L5 did the trick, and I figured out why my sweep generator was not doing what it should. The instructions call for putting a capacitor between the Signal generator and the ungrounded shield around the FM Mixer (V2). Well my sweep generator RF output probe already has that and adding a second one seemed to greatly attenuate the signal.

This time the alignment went smoothly and quickly.

The only issue remaining is that I have to turn the balance far to the right to get proper stereo.

This stereo has always had this issue and I am not sure if it is caused by one of the output channels or if I need to do the stereo alignment.

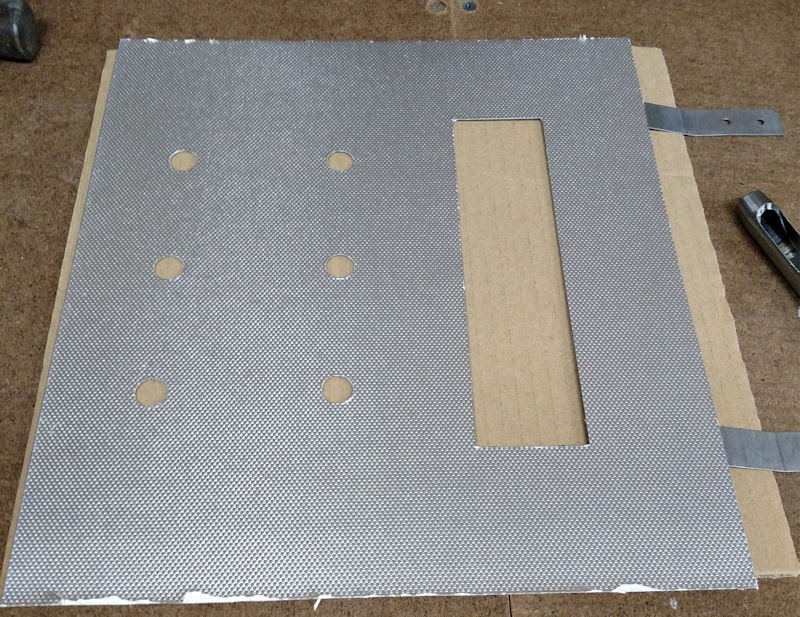

 Applying the background to the plate for the tuning dial went pretty quickly and easily. I used a light coating of some spray on contact glue applied to the face of the plate and the back of the diamond texture foil, carefully aligned it with the top and left edge and then gently smoothed it from the center out.

I trimmed it from the back side using a NEW (very important) exacto knife blade. Be very careful that you cut all the way through the paper and foil. You can see at the bottom where I did not go all the way through and when I removed the excess paper it pulled some of the foil off. This won't be seen so it is not a big deal. I used a hole punch backed by a block of tape covered aluminum to punch out the holes for the pot shafts.

When I cut out the large rectangular hole I removed the piece pushing it through from the front (foil covered) out the back to avoid tearing or pulling the foil off the paper backing.

I did the stereo alignment.
There are 2 problems with doing it:
The instructions are not clear.
A17, A18, A19 are completely stuck (possibly glued in place).

I was able to adjust the 19kc Pilot settings, but not in the way they said. The instructions say to input the 19kc in to pin 2 of V6 (which I did) but when I adjusted them as described the stereo signal was wonky and there was a hum that increased or decreased in pitch when A15 and A16 were adjusted. This meant the pilot was off. Instead what I did was, I have a Leader LSG231 stereo generator, I outputted the composite signal from that to V6, set it to L+R hooked the scope up to the speakers, made sure the radio was set to stereo. adjusted volume and balance, alternating with adjusting A15 and A16. I adjusted A15 to get the beat frequency nulled, and A16 to get the sign wave traces to match. I would then (while listening through head phones make sure the balance was even. This was made difficult since there is a bias in my stereo to the left side, and I think it is because one or more of the tubes is slightly weak on the right side.

I replaced the "weather stripping" from the front of the radio.

I re-glued the rubber strips to the top and bottom of the dial glass using tacky glue (I do not want it to be permanent).

Putting the dial glass back in the radio was difficult as there are wooden blocks that help hold it in place, these blocks fell out. I figured out where one went but the small one I just guessed. The long one I glued back in place, but I just wedged the other one in. The rubber kept binding and not wanting to stay where it should on the glass, but I got it in properly.

I found that the FM dial does not track accurately even though 98 is lined up properly. I think there is more to the alignment then Sam's has in the instructions. I would probably need an actual GE service manual to get it to track right. Since it works and sounds good I am not going to mess with it anymore.

I put the back on and cleaned the power cord.

The dial light works as it should, however without the dial light it is hard to read the reverse painted letters on the dial glass, which was the case with the original silver backing.

It sounds great with the OEM speakers, there is no need for the bass boost couplates, there is more than enough bass and with the speakers closed the bass is further reduced. Stereo separation is perfect (adjusted for my left bias). The left bias exists even with an mp3 player connected to the phono input.

Federal Ten Ten Heresy stereo "boom box" build

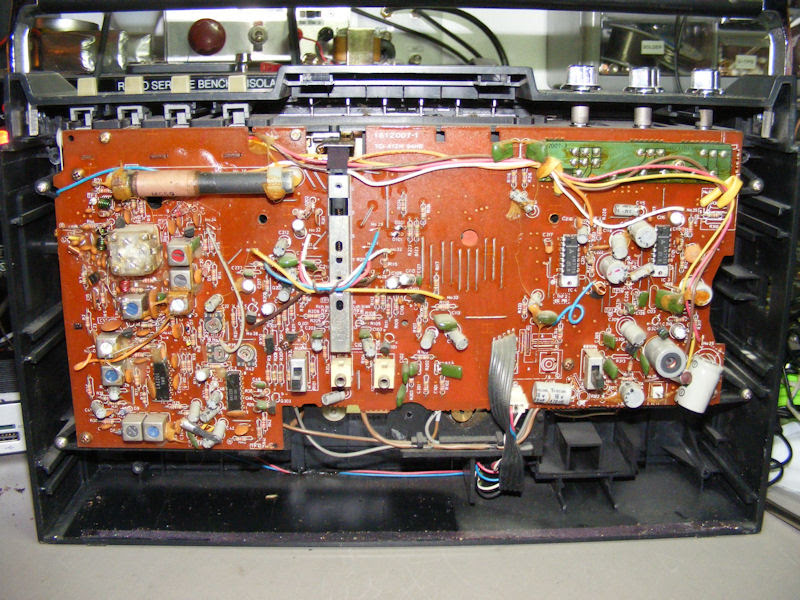

I built a small radio/boom box using the case from and old Federal Ten Ten and various and sundry parts.
I used for the radio one of these:
http://www.ebay.com/itm/291692426129?_t ... EBIDX%3AIT


The is an AA-AB32155 from Parts Express (15 watts per channel):


in the last couple of years I Bought 2 of these:


The first one was a VHF low version that only worked in the 30mhz range and was useless to me. The second one was the VHF High version but was dinged up. Luckily this radio can be completely disassembled and I was able to make the VHF high look good as well as get the correct crystal I needed.

The remaining Ten Ten had a broken antenna and while it worked, I have no use for a 30 mhz radio. I gutted it and am now in the process of building speaker mounts. I also was able to fix the antenna using one I had purchased in a lot of 12 from ebay. I will be building a small 12 volt linear power supply (Possibly regulated). The speakers are 2 - 4 or 8 ohm (not marked) speakers that I got from somewhere (maybe computer speakers).

 I found a piece of brass for the panel to mount the speakers to.


Painted the front of the panel.


Cutout the space for the radio, mounted it, the speakers, battery, and the amplifier in the case. Wired up the the external power and the antenna.


I had reversed and painted the speaker cover as the original finish was in bad shape.


The switch is just and on/off switch as the amp does not have a volume control, the volume is controlled by the radio or the remote. I have to open the back to charge the 2200mah LIPO. The amp draws 2 amps at full volume (supposedly) and the radio draws a max of 500ma. At normal listening volume the radio could run for several hours on battery. There is a 2 amp fuse on the battery.

Total time to build about 10 hours.

 Some minor finishing touches (a name tag).


Labels and charging connector for the battery on the back of the radio.

Yes it sounds pretty good and puts out more volume than I would ever need.

Battery Charger build

A while ago I had acquired an old 8 amp selenium rectifier car battery charger.

I took the parts from that and built a new one.



But I needed a case. I had discarded the old one.

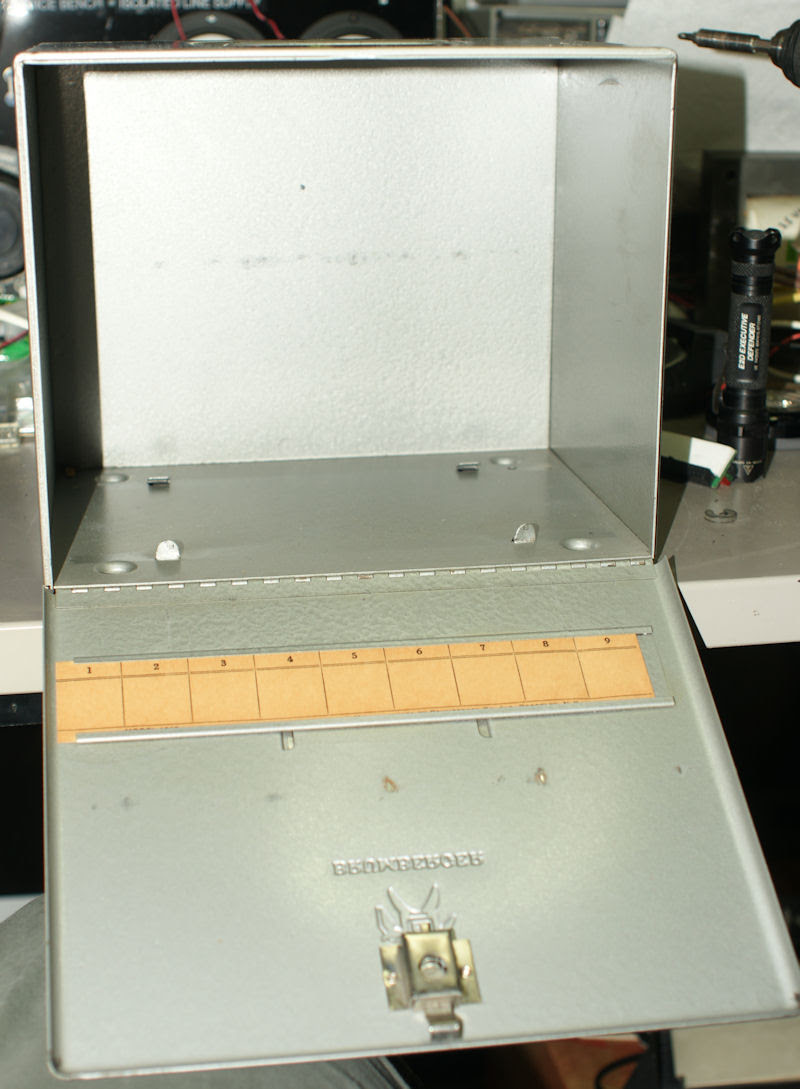

Recently I found this Brumberger film carrier:



 I drew up plans in autocad for the front and back:



I laid them out on the front and cut the holes out.

The timer I got is a Haydon Model ADI 1A001C D130302.

The actual timer on the back is a General Time E15450 A2631A1 timer.

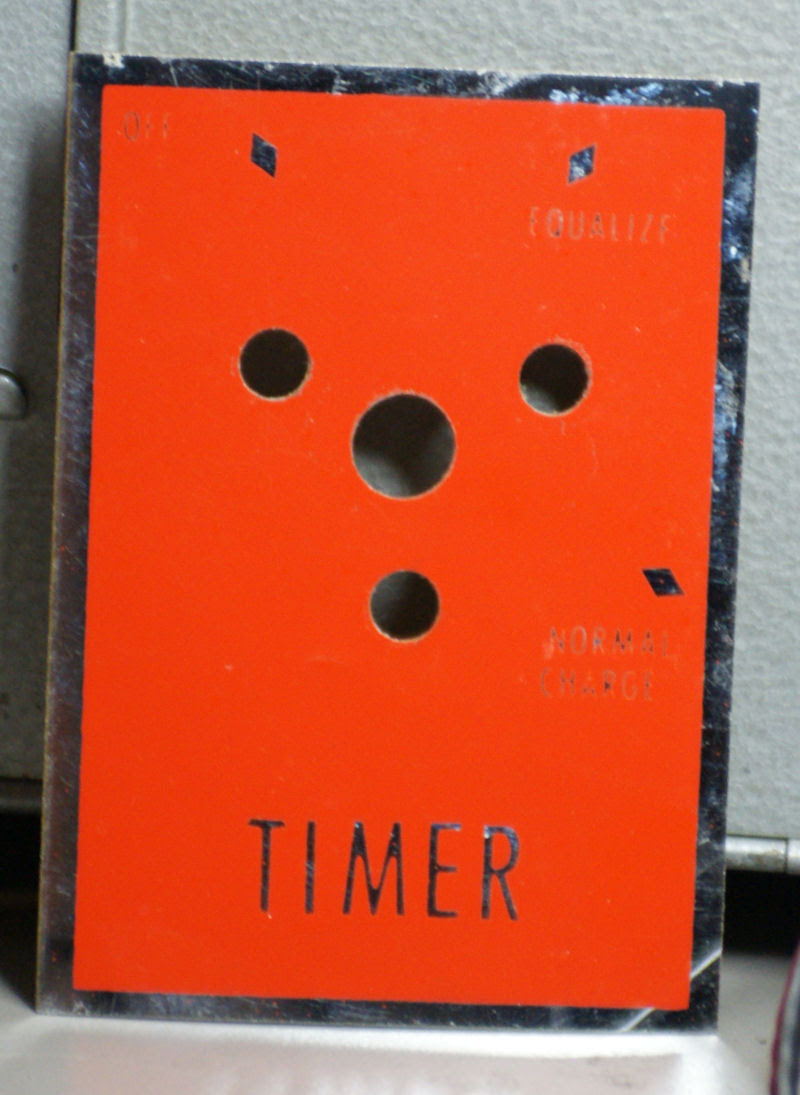

The cover plate (which is a sticker) says OFF, EQUALIZE, and NORMAL CHARGE. It appears the only source for these is here: http://www.electronicsurplus.com/haydon-1a001c-d130302-0-16-hours-adj-timer-120v-spst-28a

The unit has 2 black wires for 120vac 60hz and 2 spade connectors for the switch. The switch can handle 250vac 28 amps. The shaft is a standard D type.

I will use a 25 watt 10 ohm POT's so I can vary the input voltage to the transformer. This charger originally had selenium rectifiers so the output voltage is about .5 volts too high. I need to reduce that and do not have any diodes that can handle the 14 amps that this charger can put out before the self resetting circuit breaker kicks in. I want to vary the input voltage anyways to experiment with some of the charging methods I have been reading about. I only need to adjust between 1 and 8 ohms to reduce the input voltage from 125 vac to 115vac if needed. My wall voltage can get rather high sometimes. I do not want to use a variac. I also do not want to over complicate the charger with a DC voltage regulator.

The finished unit:

I used a 50 amp quick disconnect so I can connect the charger to standard clamps and to other types of connections.

There is only one fan on the back, the bottom is just a vent hole.

The timer is set by moving it clockwise or counter clockwise to either "normal charge" or "Equalize". The timer moves clockwise and opens the charging circuit when it hits off. The separate power switch means that the fan will continue to cool the unit once charging has completed.
